4D Red Laser Level

MOQ: 1 Pieces

Delivery time: 15 Day

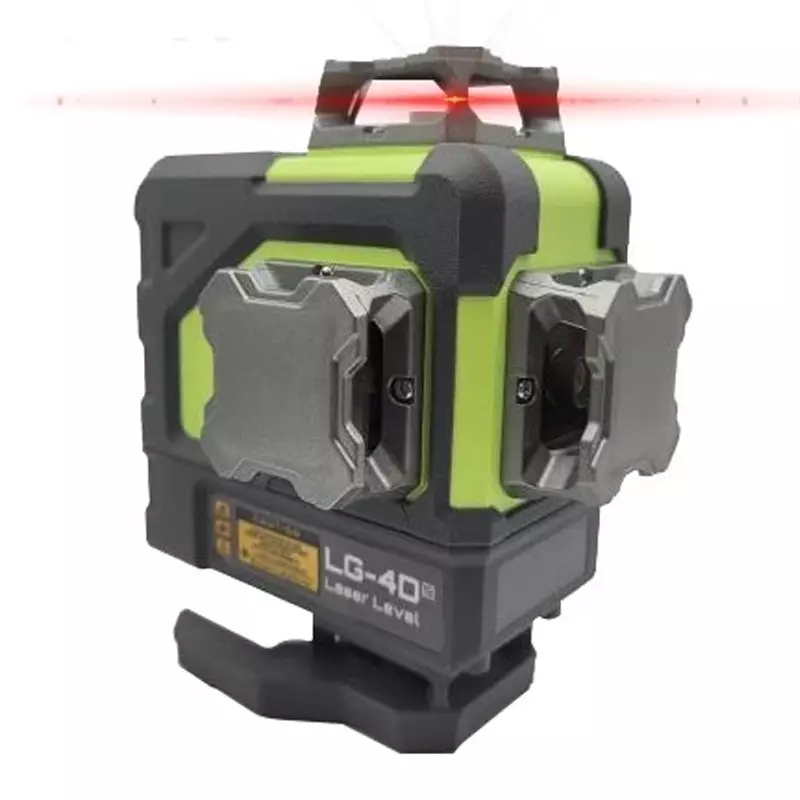

Model:NK04DLP360/LP04DLP360 optical instruments and measurement tools. Its newly launched 4D red laser level has attracted market attention. In addition to traditional horizontal and vertical lines, this 4D red laser level also features tilt angle detection, providing users with a more comprehensive and accurate measurement solution.

Products

Red Laser Level

Green Laser level

Accessories for Laser Level

Latest News

Simplify the installation of laser level meters to improve the efficiency of the construction site

18 Jul, 2025

Where is the Specific Application of 3D Red Laser Level?

18 Jul, 2025

How to install Red Laser Level safely

18 Jul, 2025

How should we choose a laser level?

18 Jul, 2025

What should be paid attention to when using a laser level?

18 Jul, 2025

Products

Product Details

As a manufacturer of 4D red laser level instruments, Laizap Opto-electros integrates the latest optical technology and cutting-edge electronic control systems into product design. The characteristic of this type of 4D red laser level is high precision and the ability to maintain stable performance in changing environments. Regardless of construction, home decoration, or any precise measurement demand scenario,Laizap Opto-electros' 4D red laser level can provide accurate and reliable horizontal reference lines, greatly improving operational efficiency.

To ensure that users enjoy the best experience, we provide a series of services and support: professional technical support, comprehensive after-sales service, and high-quality accessories. Both professional construction workers and DIY enthusiasts can obtain a more efficient and accurate measurement experience through Laizap Opto-electros' 4D red laser level.

Model	NK04DLP360（4d）	LP04DLP360（4d）
Light Source-red	630nm - 650nm	630nm - 650nm
LD power	30mW	30mw
Accuracy	± 3mm / 10m	± 3mm / 10m
Laser class	Level 2 (output power<1mW) Class 2	Level 2 (output power<1mW) Class 2
Laser beam	two 360° horizontal line + two 360° vertical lines	two 360° horizontal line + two 360° vertical lines
Self-leveling range	4° ± 1°	4° ± 1°
Working distance	100ft/30m, 200ft/60m with detector (red beam)	100ft/30m, 200ft/60m with detector (red beam)
Operating time	12H/first gear; 24H/second gear.	6H/first gear; 12H/second gear.
Power source	7.4V-4000mah lithium battery ( inside battery)	7.4V-2600mah lithium battery pack
USB charging	Yes	Yes
Mount size	1/4"-20 mounting thread	1/4"-20 and 5/8"-20 mounting thread
IP rating	IP54	IP54
Function	Self-leveling mode, manual mode, and pulse mode.	Self-leveling mode, manual mode, and pulse mode.
Working temperature	-10℃ ~ 50℃	-10℃ ~ 50℃
Storage temperature	-20 ~ 70℃	-20 ~ 70℃
Packing - Carry bag	Kit included: 1. NK04D laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box	Kit included: 1. LP04D laser level 2. multiple bracket 3. Type-C Power cable 4. 2X battery 5. instruction book 6. bag 7. color box
Packing - Plastic case	Kit included: 1. NK04D laser level 2. multiple bracket 3. target plate 4. red glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve	Kit included: 1. LP04D laser level 2. multiple bracket 3. back clip 4. target plate 5. red glasses 6. 2X battery 7. Type-C Power cable 8. Power Adaptor 9. instruction book 10. plastic case 11. color sleeve
Key Points Summary	4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included,	4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included,
