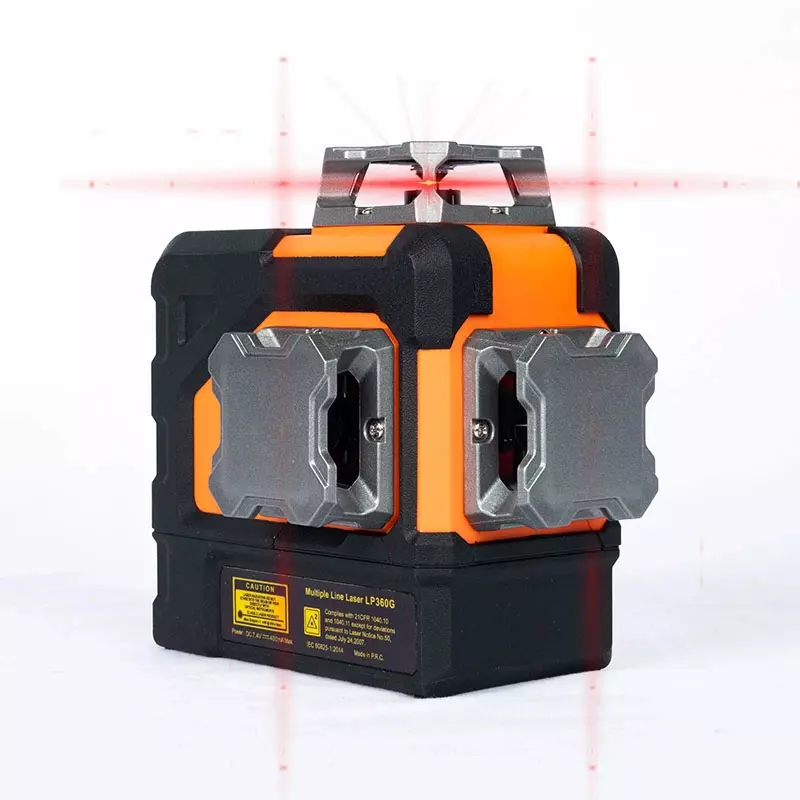

As a professional supplier of 3D red laser level, Laizap Opto-electros focuses on providing cutting-edge technical solutions. This type of 3D red laser level integrates various innovative technologies, such as automatic calibration, 360 ° comprehensive horizontal line and other features, bringing unprecedented convenience to fields such as construction engineering and interior decoration. Whether conducting precise measurements in large construction projects or performing simple decoration tasks in home environments,Laizap Opto-electros' 3D red laser level can produce accurate measurement data to ensure smooth project progress.
Founded in 2017, Laizap Opto-electros integrates research and development, production, and sales, focusing on providing customers with cutting-edge, high-quality laser products, professional technical support, and comprehensive system solutions. With strong technological capabilities, we provide one-stop services from individual products to overall solutions.
Light Source-Green |
630nm - 650nm |
LD power |
30mw |
Accuracy |
± 3mm / 10m |
Laser class |
Level 2 (output power<1mW) Class 2 |
Laser beam |
one 360° horizontal line + two 360° vertical lines |
Self-leveling range |
4° ± 1° |
Working distance |
100ft/30m, 200ft/60m with detector (red beam) |
Operating time |
7H/first gear; 15H/second gear. |
Power source |
7.4V-2600mah lithium battery |
USB charging |
Yes |
Mount size |
1/4"-20 and 5/8"-20 mounting thread |
IP rating |
IP54 |
Function |
Self-leveling mode, manual mode, and pulse mode. |
Working temperature |
-10℃ ~ 50℃ |
Storage temperature |
-20 ~ 70℃ |
Packing - Carry bag |
Kit included: 1. LP360 laser level 2. multiple bracket 3. Type-C Power cable 4. 2X battery 5. instruction book 6. bag 7. color box |
Packing - Plastic case |
Kit included: 1. LP360 laser level 2. multiple bracket 3. back clip 4. target plate 5. red glasses 6. 2X battery 7. Type-C Power cable 8. Power Adaptor 9. instruction book 10. plastic case 11. color sleeve |
