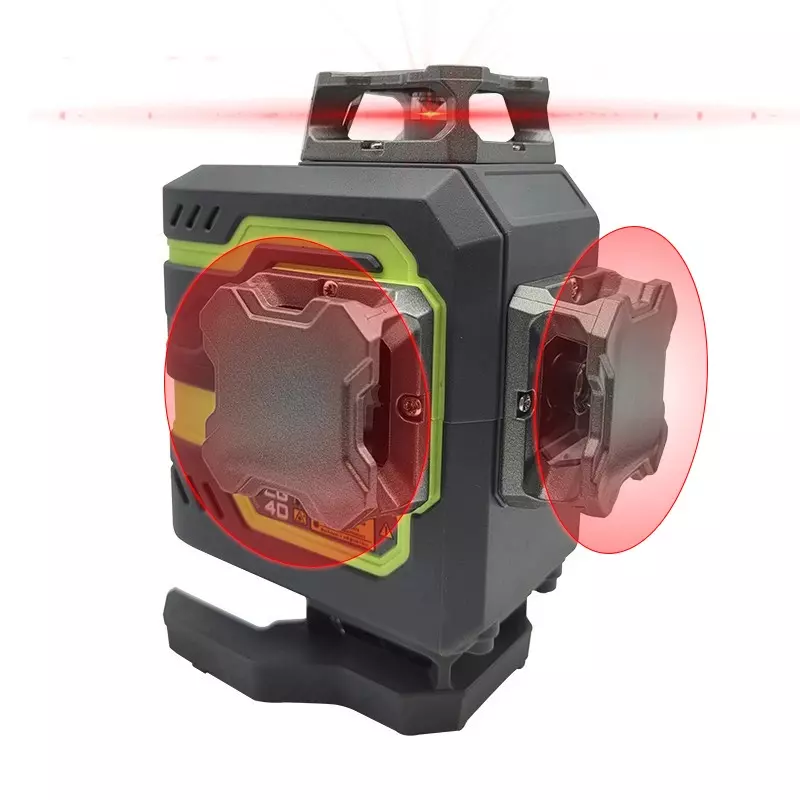

Red 16 Lines Laser Level

MOQ: 1 Pieces

Delivery time: 15 Day

Model:NK04DLP360/LP04DLP360 Laizap Opto-electros - a professional optoelectronic equipment manufacturer, proudly recommends the red 16 lines laser level. This product is widely praised in the fields of construction and decoration for its high precision and reliability. Suitable for indoor decoration to large-scale outdoor projects, providing precise reference benchmarks to help you efficiently complete tasks.

Products

Red Laser Level

Green Laser level

Accessories for Laser Level

Latest News

Simplify the installation of laser level meters to improve the efficiency of the construction site

18 Jul, 2025

Where is the Specific Application of 3D Red Laser Level?

18 Jul, 2025

How to install Red Laser Level safely

18 Jul, 2025

How should we choose a laser level?

18 Jul, 2025

What should be paid attention to when using a laser level?

18 Jul, 2025

Products

Product Details

As a responsible supplier, we are aware of the differences in demand for red 16 lines laser level instruments across various industries. Therefore, Laizap Opto-electros implements customized services, adjusts product functions and specifications according to customers' unique needs, and ensures that each customer receives an exclusive adaptation solution. We can meet any specific length of laser lines, enhanced durability design, or other personalized requirements.

We are extremely eager to work together with customers from all over the world to explore the potential of laser technology in various fields. If you are interested in our red 16 lines laser level or other product lines, or would like to discuss exclusive customization solutions, please feel free to contact us at any time. Laizap Opto-electros is committed to providing top-notch products and services to global customers, and we firmly believe that our collaboration will be pleasant and effective.

Model	NK04DLP360（4d）	LP04DLP360（4d）
Light Source-red	630nm - 650nm	630nm - 650nm
LD power	30mW	30mw
Accuracy	± 3mm / 10m	± 3mm / 10m
Laser class	Level 2 (output power<1mW) Class 2	Level 2 (output power<1mW) Class 2
Laser beam	two 360° horizontal line + two 360° vertical lines	two 360° horizontal line + two 360° vertical lines
Self-leveling range	4° ± 1°	4° ± 1°
Working distance	100ft/30m, 200ft/60m with detector (red beam)	100ft/30m, 200ft/60m with detector (red beam)
Operating time	12H/first gear; 24H/second gear.	6H/first gear; 12H/second gear.
Power source	7.4V-4000mah lithium battery ( inside battery)	7.4V-2600mah lithium battery pack
USB charging	Yes	Yes
Mount size	1/4"-20 mounting thread	1/4"-20 and 5/8"-20 mounting thread
IP rating	IP54	IP54
Function	Self-leveling mode, manual mode, and pulse mode.	Self-leveling mode, manual mode, and pulse mode.
Working temperature	-10℃ ~ 50℃	-10℃ ~ 50℃
Storage temperature	-20 ~ 70℃	-20 ~ 70℃
Packing - Carry bag	Kit included: 1. NK04D laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box	Kit included: 1. LP04D laser level 2. multiple bracket 3. Type-C Power cable 4. 2X battery 5. instruction book 6. bag 7. color box
Packing - Plastic case	Kit included: 1. NK04D laser level 2. multiple bracket 3. target plate 4. red glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve	Kit included: 1. LP04D laser level 2. multiple bracket 3. back clip 4. target plate 5. red glasses 6. 2X battery 7. Type-C Power cable 8. Power Adaptor 9. instruction book 10. plastic case 11. color sleeve
Key Points Summary	4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included,	4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included,
