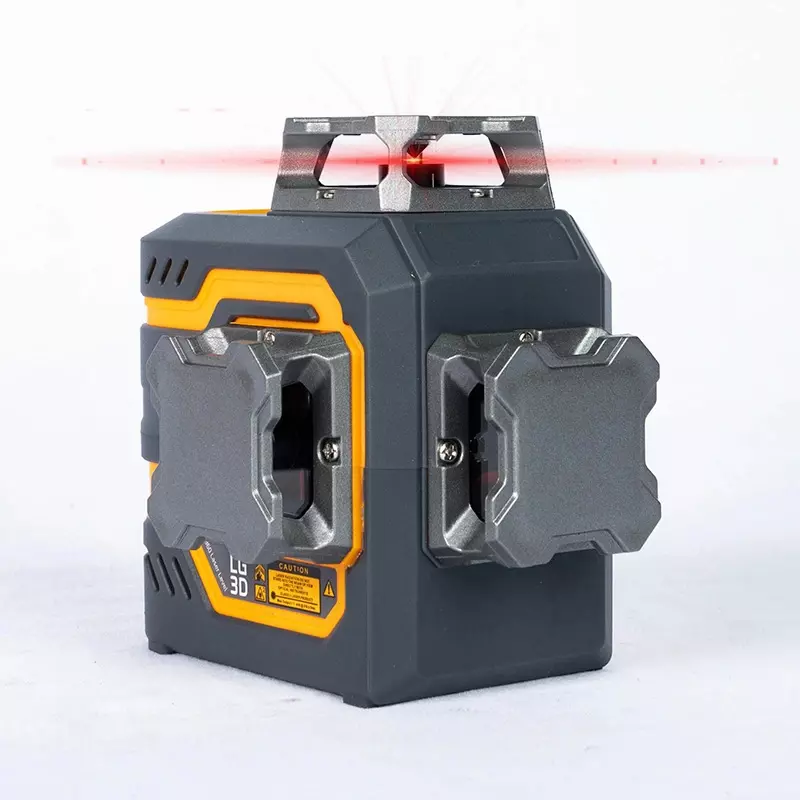

As a manufacturer of laser measurement tools driven by technological innovation, Laizap Opto-electros always puts product quality and customer needs first. The company adheres to the business philosophy of "quality first, customer first" and is committed to providing the most professional laser equipment and the most comprehensive after-sales service for domestic and foreign customers. We are well aware that in the fierce market competition, only through continuous technological innovation and continuous optimization of product performance can we win the long-term trust of customers. three ✖ As a star product of Laizap Opto-electros, the 3x360° built-in lithium battery red laser level has won widespread praise in the Chinese and overseas markets for its excellent performance and reliable quality.
Laizap Opto-electros is a professional optoelectronic equipment manufacturer headquartered in China.The built-in high-capacity lithium battery design not only enables the instrument to work continuously for a long time, but also charges quickly, improving work efficiency and equipment convenience. Red light laser technology can be clearly visible under various lighting conditions, making it particularly suitable for use in strong light or daytime operations. In addition, the design of the equipment is highly ergonomic, easy to operate, and widely applicable to various fields such as large-scale construction surveying, decoration positioning, and wall laying.
Light Source-Red |
630nm - 650nm |
LD power |
30mW |
Accuracy |
± 3mm / 10m |
Laser class |
Level 2 (output power<1mW) Class 2 |
Laser beam |
one 360° horizontal line + two 360° vertical lines |
Self-leveling range |
4° ± 1° |
Working distance |
100ft/30m, 200ft/60m with detector (green beam) |
Operating time |
8H/first gear; 16H/second gear. |
Power source |
3.7V-5200mah lithium battery ( inside battery) |
USB charging |
Yes |
Mount size |
1/4"-20 mounting thread |
IP rating |
IP54 |
Function |
Self-leveling mode, manual mode, and pulse mode. |
Working temperature |
-10℃ ~ 50℃ |
Storage temperature |
-20 ~ 70℃ |
Packing - Carry bag |
Kit included: 1. NK360-S laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box |
Packing - Plastic case |
Kit included: 1. NK360-S laser level 2. multiple bracket 3. target plate 4. Green glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve |
Key Points Summary |
3D Laser Level Self Leveling 3x360°, 3D Red Beam Cross Line Laser for Construction and Picture Hanging, 3 x 360 Green Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included, red Laser, |
