Laizap Opto-electros, a rising star in the Chinese technology industry, specializes in researching green 16 lines built-in lithium battery laser level. Rooted in the hot soil of Chinese innovation, relying on solid technological foundation and the concept of quality first, we continuously contribute high-end products. For the production of laser level instruments, the company has devoted great effort to overcoming technical difficulties, upgrading product efficiency, and making "Made in China" famous on the international stage.

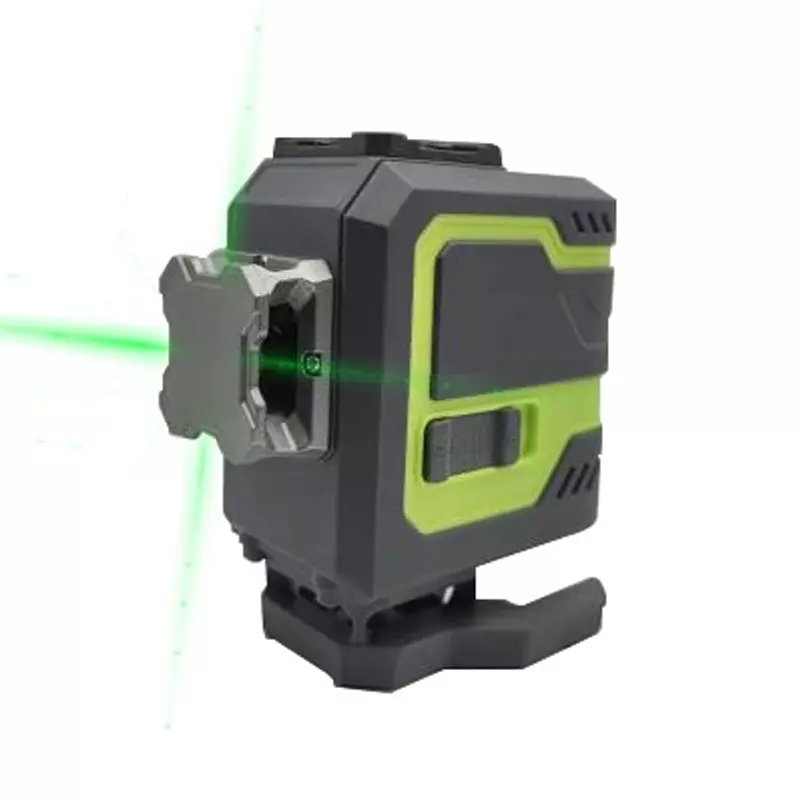

This green laser level is widely used in fields such as construction, decoration, and installation. Assist workers in accurately measuring horizontal and vertical levels during construction to ensure smooth walls and floors; During decoration, assist in the installation of doors and windows, and lay ceramic tiles to ensure accurate positioning; When installing equipment, it also plays a crucial role in ensuring the installation level.
Light Source-red |
630nm - 650nm |
LD power |
30mW |
Accuracy |
± 3mm / 10m |
Laser class |
Level 2 (output power<1mW) Class 2 |
Laser beam |
two 360° horizontal line + two 360° vertical lines |
Self-leveling range |
4° ± 1° |
Working distance |
100ft/30m, 200ft/60m with detector (red beam) |
Operating time |
12H/first gear; 24H/second gear. |
Power source |
7.4V-4000mah lithium battery ( inside battery) |
USB charging |
Yes |
Mount size |
1/4"-20 mounting thread |
IP rating |
IP54 |
Function |
Self-leveling mode, manual mode, and pulse mode. |
Working temperature |
-10℃ ~ 50℃ |
Storage temperature |
-20 ~ 70℃ |
Packing - Carry bag |
Kit included: 1. NK04D laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box |
Packing - Plastic case |
Kit included: 1. NK04D laser level 2. multiple bracket 3. target plate 4. red glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve |
