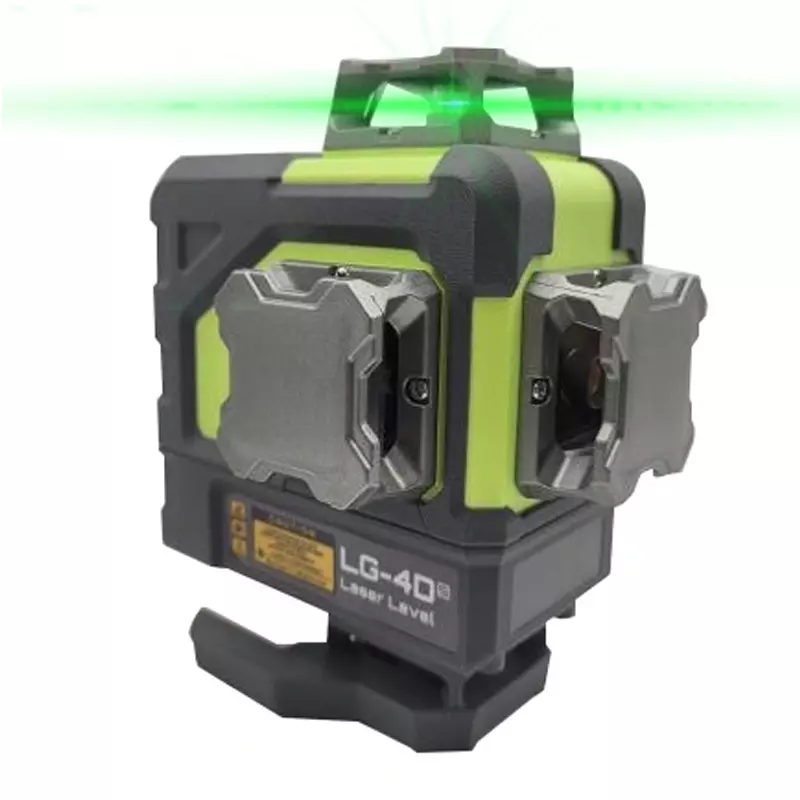

As a supplier, Laizap Opto-electros ' core advantages lie in its excellent product quality and comprehensive after-sales service system. The green 16 line laser level adopts the most advanced laser emission technology and a highly sensitive automatic leveling system, which can automatically perform precise leveling on the construction site, avoiding the inconvenience caused by manual errors. This device has the feature of simultaneously projecting 16 laser lines, which can achieve 360 degree measurement in all directions, providing clearer and more intuitive laser guidance, greatly improving construction accuracy and work efficiency. Especially in large-scale construction and complex space decoration, the green 16 line laser level can help workers quickly locate various measurement points, ensuring construction accuracy and quality.
Laizap Opto-electros is an innovative enterprise focusing on high-precision laser measurement equipment, dedicated to providing efficient and accurate laser products for various construction, decoration, measurement and other industries. As a professional supplier, Razer Aipu Optoelectronics has continuously broken through technical bottlenecks and launched a number of market-competitive laser measurement instruments.
Model |
NK04DLP360(4d) |
LP04DLP360(4d) |
Light Source-Green |
505nm - 550nm |
505nm - 550nm |
LD power |
30mW |
30mw |
Accuracy |
± 3mm / 10m |
± 3mm / 10m |
Laser class |
Level 2 (output power<1mW) Class 2 |
Level 2 (output power<1mW) Class 2 |
Laser beam |
two 360° horizontal line + two 360° vertical lines |
two 360° horizontal line + two 360° vertical lines |
Self-leveling range |
4° ± 1° |
4° ± 1° |
Working distance |
100ft/30m, 200ft/60m with detector (green beam) |
100ft/30m, 200ft/60m with detector (green beam) |
Operating time |
12H/first gear; 24H/second gear. |
6H/first gear; 12H/second gear. |
Power source |
7.4V-4000mah lithium battery ( inside battery) |
7.4V-2600mah lithium battery pack |
USB charging |
Yes |
Yes |
Mount size |
1/4"-20 mounting thread |
1/4"-20 and 5/8"-20 mounting thread |
IP rating |
IP54 |
IP54 |
Function |
Self-leveling mode, manual mode, and pulse mode. |
Self-leveling mode, manual mode, and pulse mode. |
Working temperature |
-10℃ ~ 50℃ |
-10℃ ~ 50℃ |
Storage temperature |
-20 ~ 70℃ |
-20 ~ 70℃ |
Packing - Carry bag |
Kit included: 1. NK04D laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box |
Kit included: 1. LP04D laser level 2. multiple bracket 3. Type-C Power cable 4. 2X battery 5. instruction book 6. bag 7. color box |
Packing - Plastic case |
Kit included: 1. NK04D laser level 2. multiple bracket 3. target plate 4. Green glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve |
Kit included: 1. LP04D laser level 2. multiple bracket 3. back clip 4. target plate 5. Green glasses 6. 2X battery 7. Type-C Power cable 8. Power Adaptor 9. instruction book 10. plastic case 11. color sleeve |
Summary |
4D Laser Level Self Leveling 4x360°, 4DRed Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included, |
4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included, |
